Proceq Profoscope
Rebar Locator



Rebar location is a central activity for anyone involved in on-site testing of reinforced structures. Locating rebars is a necessity when drilling, cutting coring as well as a preliminary operation required for most other non-destructive investigations.
Abbey Spares Ltd Proceq Profoscope Rebar Locator

Proceq Profoscope Rebar Locator

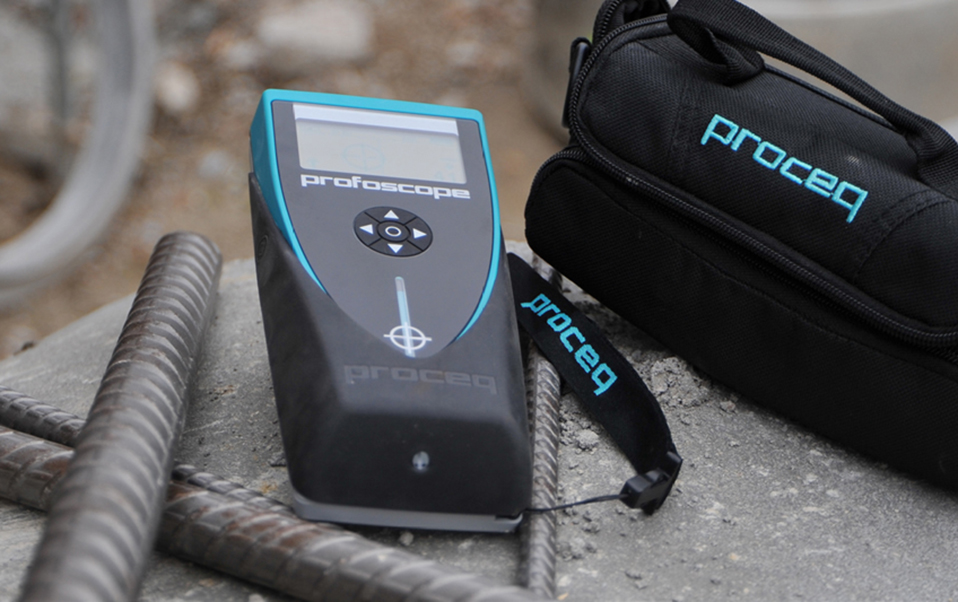

The Proceq Profoscope is a versatile, fully-integrated rebar detector and cover meter with a unique real-time rebar visualization allowing the user to actually “SEE” the location of the rebar beneath the concrete surface to a maximum depth of 180 mm. This is coupled with rebar-proximity indicators and optical and acoustical locating aids. Rebar diameter can also be estimated within the specified testing range. The Proceq Profoscope combines these unique features in a compact, light device that allows the user to operate this rebar detector with one hand making the task of locating rebars a simple and efficient process. In addition, Proceq’s rebar detector convinces through its intuitive user interface making rebar detection easy.

Availabe as Basic and the new Plus model, the Proceq Profoscope + Rebar Locator has the benefit of data logging the results for download to a PC.
The Proceq Profoscope Cover Meter uses different coil arrangements to generate several magnetic fields.

Advanced signal processing allows:

  • Localization of a rebar
  • Localization of the mid-point between rebars
  • Determination of the cover
  • Estimation of the bar diameter
  • Determination of the orientation of a rebar

The Proceq Profoscope Cover Meter is designed to permit single handed operation. All functions can be programmed/activated using the two function keys and the navigation. The instrument is compact, light and robust suitable for use on a construction site. Unfavorable lightning conditions may be found for instance in parking decks. Equipped with the optional illumination, the display can be examined much easier even under such adverse conditions.

Click on the PDF to download a copy
Download PDF of Proceq Profoscope Rebar Locator
