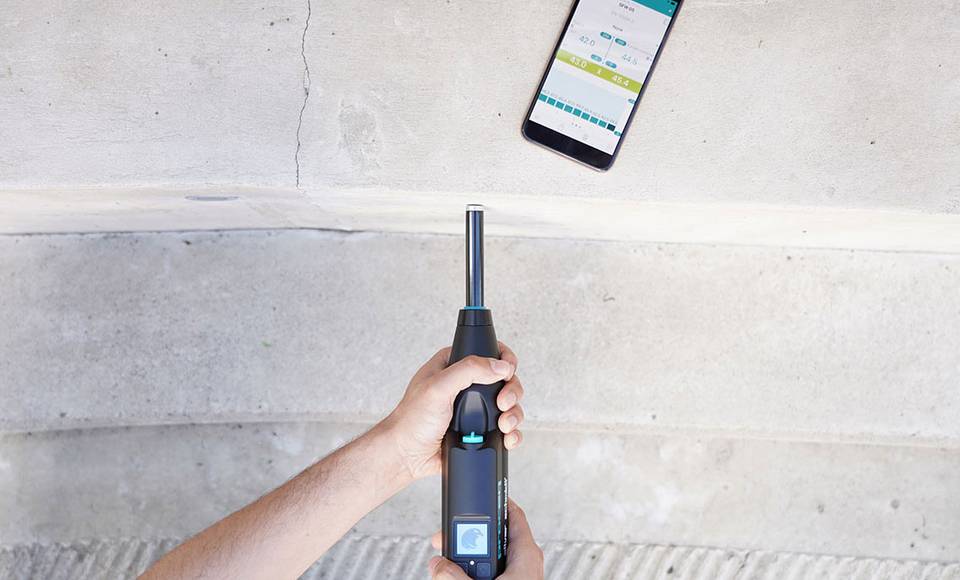

Proceq Silver
Schmidt Live OS8200

As accurate, reliable and versatile as ever. Now Live. The global benchmark for non-destructive compressive strength estimation.

The optical measurement technology of Silver Schmidt Live delivers compressive strength measurements with a higher range and far lower dispersion than any classical rebound hammer. Its versatile connectivity increases operator productivity and makes instantaneous reporting possible, from anywhere, anytime.
Abbey Spares Ltd Proceq Silver
Schmidt OS8200 Live

Concrete strength and uniformity evaluation using optical rebound hammer technology

Digital versatility

Silver Schmidt Live OS8200 works as:

  • Connected digital hammer with instantaneous reporting and data sharing thanks to a user-friendly mobile app (Apple® iOS or Android)
  • Stand-alone digital hammer with automatic calculation of the rebound value.
  • Digital hammer wirelessly connected to a Bluetooth printer for direct print-out of test results

Silver Schmidt accuracy

The Q-value brings greater accuracy at higher strengths. Independent testing by the German Committee for Structural Concrete and the Bundesanstalt für Materialforschung und Prüfung (BAM) has consistently demonstrated that the Q-value featured in Silver Schmidt OS8200 is much better suited for working with high strength concrete. Furthermore, similar studies carried out in Germany, China and Japan have proven that the Q-value delivers tighter, more accurate correlations for custom material curves.

Original Schmidt Live mobile app

Flexibility for all applications
Correlation to custom materials in accordance with major standards Apply user defined corrections for carbonation, form factors, etc.

Compliance to standards
Select standard units and form factors Hammer verification management according to requirements of major standards Automated EN13791 test region screening test report.

Collaboration and reporting
Visual report generation using lists, bar charts and statistics Single and multiple series export in PDF or CSV format Logbook annotations for full trace ability (geolocation, text, images, voice) .

Click on the PDF to download a copy
Download PDF of Proceq Silver
Schmidt OS8200 Live


OInstrument Firmware Automatic calcuation of rebound value according to international standards.

  • Concrete: strength estimations, formwork removal and to complement core testing.
  • Paper: roll profiling in mills and converter plants.
  • Geology: strength testing, ageing, weathering (field and lab).

  • Display

  • Any compatible Apple iOS device
    (please see App Store for details)
  • Any supported Android device
    (see Google Play Store for details)

  • Memory
    Instument memory > 20’000 impacts.
    Display memory – Memory of iOS or Android device.
    Low energy bluetooth, USB for charging and updates.


  • Impact angle independent
  • Displays the series on-screen as you work
  • Series validity checked automatically
  • Review an entire series
  • Delete impacts
  • Test region reporting
  • Select units, form factor and correlation curves
  • Create your own custom curves

  • Report Generation:


  • English
  • German
  • Japanese
  • Chinese
  • Korean,
  • Spanish
  • Portuguese
  • Italian
  • French
  • Russian

  • Standards and Guidelines:

  • EN 12504-2EN 13791
  • ASTM C 805
  • ГОСТ 22690
    • CACI 228.1R

  • Disclaimer Apple, the Apple logo, iPad, and iPad Pro are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.


  • Single, multiple series, test region (uniformity, EN13791).
  • Battery: Standard AAA, alkaline or rechargeable.
  • Battery Lifetime: > 20’000 impacts between charges.
  • Report Generation: Operating Temperature.
