Proceq Portable GPR Live GP8100

Proceq GP8100 Ground Penetrating Radar is yet another revolution by Proceq in concrete inspection and imaging. The rugged, lightweight Swiss Made probe packs our unique radar technology in a tiny footprint with gigantic clarity and depth.

This makes it possible to locate rebar and tendon ducts by inspecting overhead, in tight spots, close to walls, from the edge of the slab and in congested spaces, such as underneath pipes.

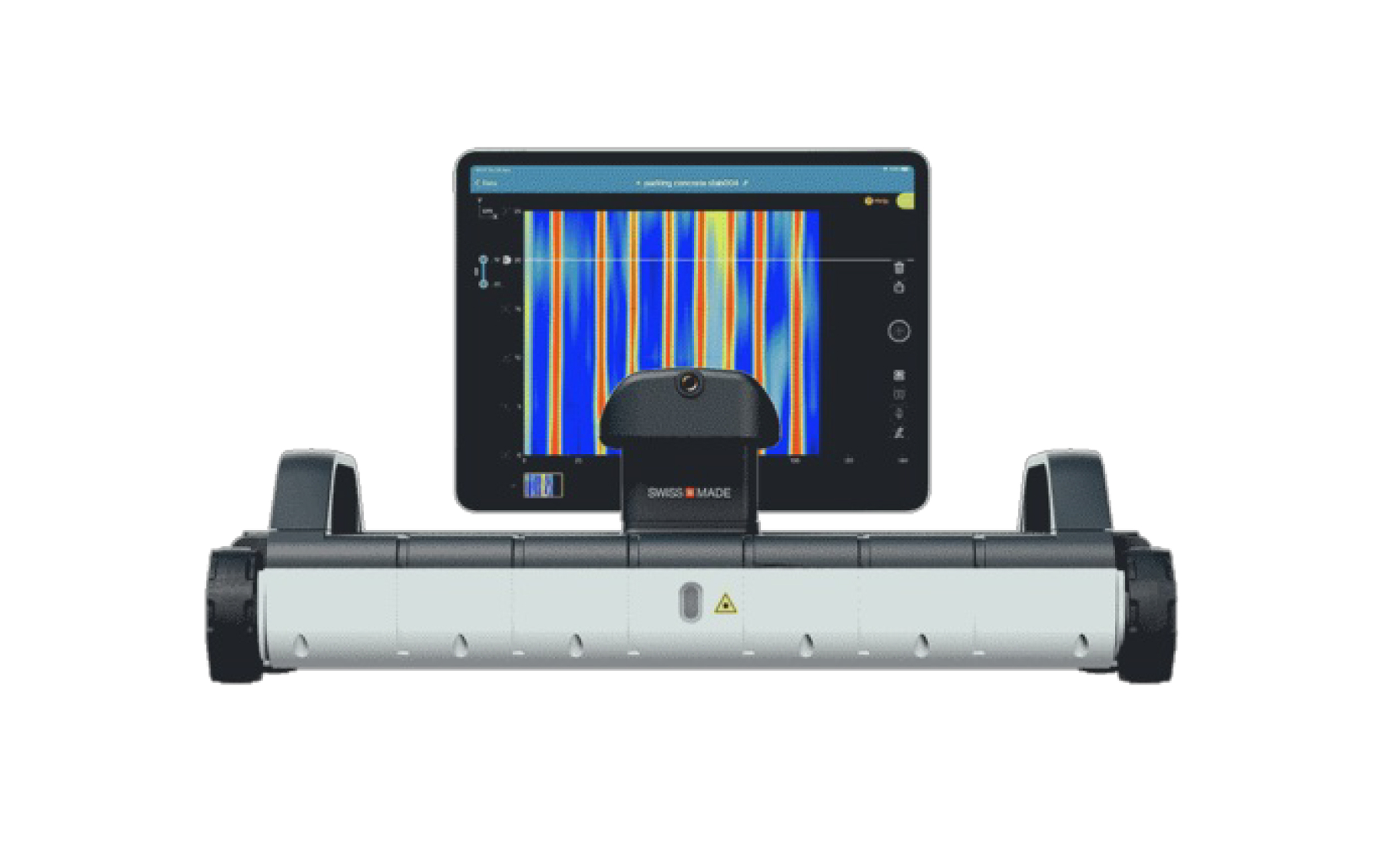

Abbey Spares Ltd Proceq GPR Live GP8000

Proceq GPR Live GP8100

Look into concrete deeply and clearly, detect objects effortlessly and reliably, and collaborate anywhere, anytime, for hit prevention, as-built verification, and structural investigation­­­ even in the toughest situations.

Thanks to unique ground penetrating radar technology, our rugged GPR probes deliver unparalleled resolution and penetration depth, at the same time. Together with our famously intuitive iPad app, Proceq GPR Live brings advanced inspection workflows on-site, including rich 3D and AR visualization, collaboration, and reporting.

Click on the PDF to download a copy
Download PDF of Proceq GPR Live GP8000abbey_spares_premierSerivce_center_logo

Software / Workspace App:

  • Measurement modes: Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100m2 / 1076 ft2)
  • Review modes: Superline scan¹ A-scan (incl. envelope) Migrated view Non-migrated view Split view¹ Time-Slice view² Basic 3D view AR
    (depending on the iPad model).
  • Advanced visualization: Time-Slice view Pro 3D view Augmented Reality (AR)
  • Reporting:
  • Workspace integration Automatic Logbook SEG-Y export Instant report generation Share via URL
  • Export formats: JPG/PNG/CSV/SEGY/HTML
  • Display Unit Specs*: Any compatible Apple® iPad (iOS 11.0 and higher) Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID
  • Display Unit Sensors*: LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS
  • * Depending on iPad model

    • Processing Unit /Sensor:

  • Radar technology: Stepped-frequency continuous-wave (SFCW) GPR
  • Modulated frequency range: 400 – 4000 MHz
  • Penetration depth: 80 cm / 31.5 in
  • Battery: Flight-safe, removable pack, 8x AA (NiMH)
  • Dimensions: 415 x 225 x 132 mm
  • Weight: 3.0 kg / 6.6 lbs (excl. battery pack)
  • Ground clearance: 0.8cm / 0.32in
  • Antennas: 6
  • Antenna distance to edge: 6.1cm / 2.40in
  • Special features: All-wheel drive with high-traction wheels and laser light guidance USB-C tethering to power bank
  • IP rating: IP54
  • Connections: Wi-Fi (802.11n) to display unit USB-C for Wi-Fi restricted areas
  • Autonomy: 3 (Up to 8 hours with off-the-shelf 10'000 mAh power bank, not included)

    •
