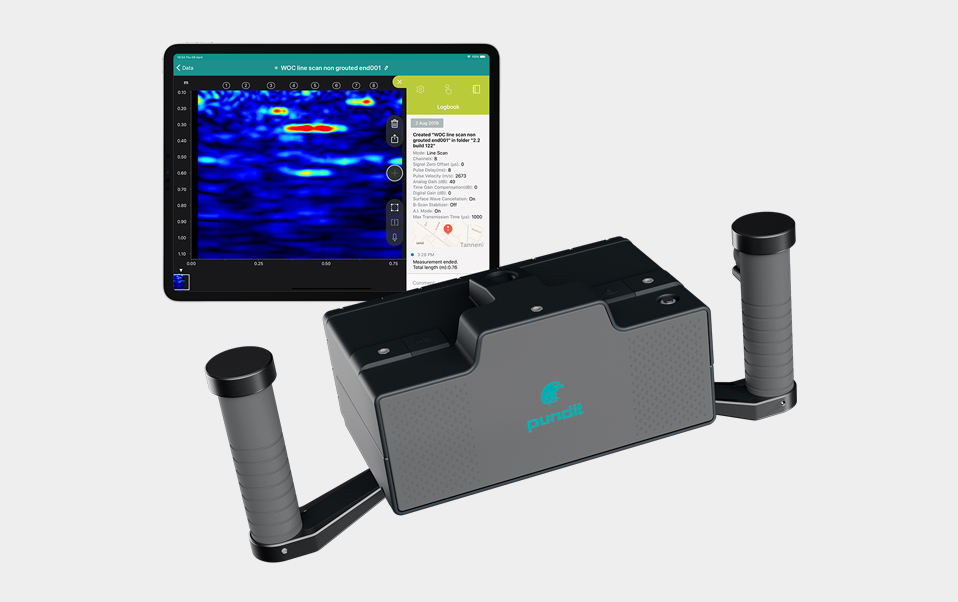

Proceq Pundit Live PD8050

The World's Lightest Wireless Ultrasonic Imaging System with Augmented Reality and AI Capabilities
Consolidated power in a single device for structural imaging, object and defect detection with ultrasound pulse echo.
Real-time imaging, weight optimization and AI assistance.
Large scale 2D, 3D, heatmap and AR visualization modes.
Superior image clarity with control of all transmission parameters.
Abbey Spares Ltd Proceq Pundit Live PD8050

Proceq Pundit Live PD8050

The Proceq Pundit Live PD8050 provides an extended range of measurement modes and superior features for on-site testing: Assess the concrete uniformity using standard A-Scans and the new Line Scan functionality, estimate the compressive strength of concrete or measure the surface velocity and the depth of perpendicular cracks.

The intelligent software supports directly accessible settings in real time from the measuring screen. The highest resolution and sharpest image available in the market allows best possible analysis of the measured waveforms.

Proceq offers an extensive range of transducers for the Proceq Pundit Live PD8050 providing highest accuracy and a proven field track record.

The Proceq Pundit PL-200PE employs state-of-the-art pulse echo technology to extend the ultrasonic application to objects where access is restricted to a single side.

The measurement process is greatly assisted by Proceq innovations such as advanced echo tracking and automatic estimation of Pulse Velocity. The A-Scan Mode allows direct analysis of the raw signal and the real-time B-Scan Mode provides a cross-sectional view perpendicular to the scanning surface. The Area Scan enables slab thickness uniformity testing in grid patterns.

This allows the user to determine the slab thickness and to localise subsurface deformities such as voids, pipes, delaminations and honeycombing.

Control buttons and optical feedback directly on the probe increase measurement efficiency and make to instrument even more user-friendly.

The Proceq Pundit PD8000 ultrasonic deep imaging scanner is perfect for thickness measurements, localisation of defects and detection of objects in concrete and fibre reinforced concrete. It features real-time B-Scans and a panorama mode.

Making pulse echo testing simpler and faster with Artificial Intelligence (A.I.) Pundit Live Array Pro wireless tomography scanner is perfect for thickness measurements, localisation of defects and detection of objects in concrete and fibre reinforced concrete. Pundit Live Array Pro will support your work with intelligent back wall detection, smart positioning and automated pulse velocity estimation.

  • Single handed positioning with upgrades to double handle and 16 channels for large area scans.
  • High resolution of defects, rebars and tendon ducts with superior near field performance.

High-resolution multi channel pulse echo technology With the 8 channel Pundit Live Array Pro measurement head, one channel transmits the ultrasonic signal and the echoes are received by the other seven channels. Each channel
transmits in turn. A complete measurement consists of 28 A-scans. These are used to compute and display a B-scan in real-time using the Synthetic Aperture Focusing Technique (SAFT). Coupling two transducers results in a 16 channel aperture processing a total of 240 A-scans per measurement cycle.

Unmatched connectivity Digital reporting, data sharing and back-up are possible directly from the Pundit Live app and through highly secure cloud services. The unique Logbook feature records the key parameters associated with each and every test including settings, time stamps, photos, site notes and geolocation. Reports can be sent directly from the iPad on-site. The Pundit Live app is intuitive and simple to use. The user interface offers many different live view settings that help to optimise on-site data acquisition and evaluation.

Click on the PDF to download a copy
Download PDF of Proceq Pundit Live PD8050


  • Location of subsurface defects of concrete
  • Measurement of thickness of concrete elements
  • Determination of concrete pulse velocity for homogeneity and strength estimation
  • Standards:

  • EN12504-4 (Europe)
  • ASTM C 597-02 (North America)
  • BS 1881 Part 203 (UK)
  • ISO1920-7:2004 (International)
  • IS13311 (India)
  • CECS21 (China) (India)
