Proceq Zonotip Ultrasonic
Thickness Instrument



Detect flaws, measure thickness and determine material properties in components including forgings, composites, plastics and welds.

Incorrect or missed inspections put your component's integrity at risk. Proceq’s advanced ultrasonic flaw detectors and thickness gauges provide intuitive measurement solutions to ensure part integrity.
Abbey Spares Ltd Proceq Zonotip Ultrasonic Thickness Instrument
<

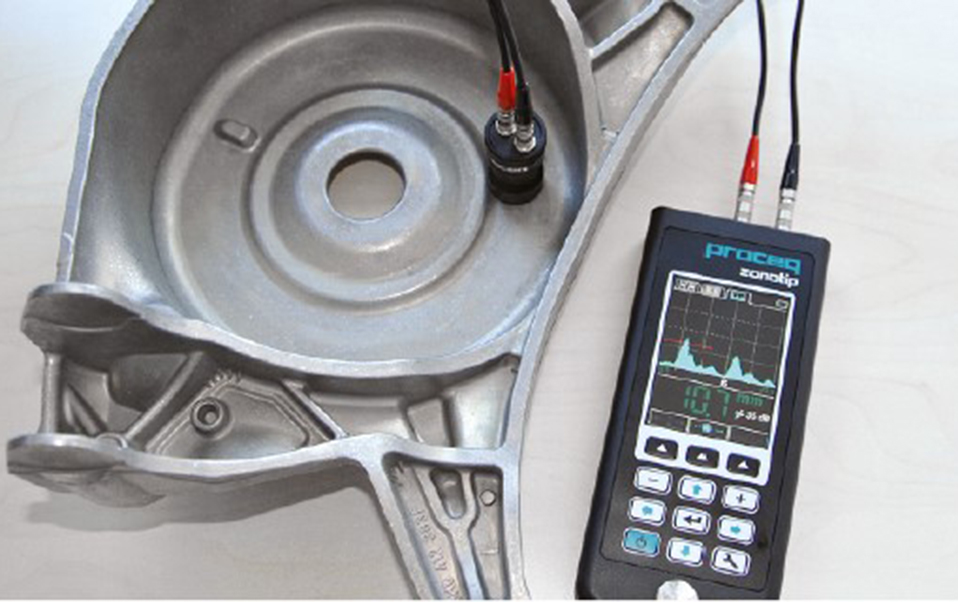

Proceq Zonotip Ultrasonic Thickness Tester

The Proceq Flaw Detector 100 is a flexible high tech ultrasonic inspection instrument. The basic UT model can be upgraded with the Ultrasonic Time of Flight Diffraction (TOFD) and Phased Array (PA) modes anytime and anywhere, even on site. The Zonotip, with its shockproof housing and fast processor, delivers reliable thickness measurements of materials including ferrous and non-ferrous metals, polymers, composites, glass, ceramics and epoxies.

The Proceq Zonotip and the Zonotip+ (with additional features) are designed to measure the thickness of not only ferrous and non-ferrous metals, but also parts made from polymers, glass, ice, and other materials with a low ultrasonic attenuation.

The Proceq Zonotip’s measuring range on steel is from 0.8 mm to 300 mm. The automation processes in the Proceq Zonotip makes measuring very convenient. The Proceq Zonotip’s large, high-contrast colour display ensures easy real-time visual control of the inspection process.

Two different probes are available: the standard dual-element 4.0 MHz transducer and the compact single-element 2.5 MHz transducer. The PC software Proceq Zonolink addresses professional data management needs.

Click on the PDF to download a copy

Click on the PDF to download a copy
Download PDF of Proceq Zonotip Ultrasonic Thickness Instrument

Features:

  • Solid body of light, shock-proof plastic
  • Suitable for difficult weather conditions (frost- and heat-proof)
  • Large high-contrast color display ensures visual control of the inspection process
  • Memory for 50’000 measurements
  • 4.0 MHz dual-element transducer
  • Automatic adaptation to the surface curvature and roughness
  • Automatic logging of max and min values while scanning the object
  • Measuring of the ultrasonic pulse velocity on a sample with known thickness
  • Colour, sound and vibration indication when set limits are exceeded
  • USB connection to PC for data transfer
  • 8 different languages selectable
  •

    Additional Features:

  • Smaller 2.5 MHz single-element transducer
  • A-Scan mode showing waveform on display and saves images to memory
  • Metal thickness measuring through surface coating (e.g. paint) in A-Scan mode
  • Proceq – Bringing you over 50 years of know how
  • Zonotip Ultrasonic Thickness Instrument
  • Applications:

  • Pipelines
  • Tanks and pressure vessels
  • Erosion determination on pipes and tubes


  • Specifications:
